Pixmaps, scaling and image transparency

Developer documentation is maintained in English in both handbook editions. Use the translation menu for another language. Code and receiver screenshots remain in English.

Static and dynamic images

Use <ePixmap> for static artwork in XML. A Python Pixmap component uses <widget name="…">. A dynamic source-based image uses an appropriate renderer, such as Pixmap, provided the source exposes the data that renderer expects.

pixmap is a file path, size is the widget rectangle and scale controls how the loaded image fits inside it. These are three different decisions.

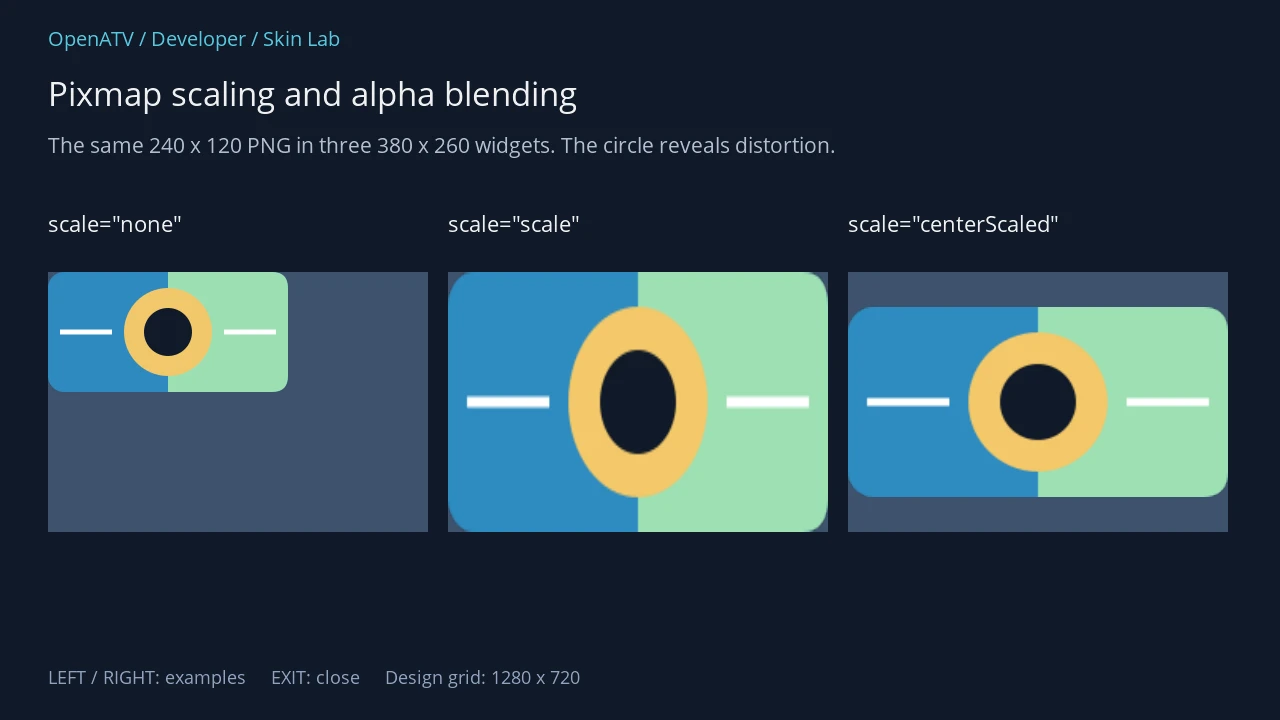

The source image is 240 × 120. Stretching it into 380 × 260 makes its circle elliptical; centerScaled keeps the circle round and centres the fitted image. Native Enigma2 OSD capture, English interface; no television video. Open original ↗

XML used for this result (inside the complete example screen):

<eLabel position="48,208" size="380,42" font="Regular;24" text='scale="none"' foregroundColor="#00FFFFFF" transparent="1" />
  <eRectangle position="48,272" size="380,260" backgroundColor="#003D526D" zPosition="0" />
  <ePixmap position="48,272" size="380,260" pixmap="~/assets/pattern.png" scale="none" alphaTest="blend" zPosition="1" />
  <eLabel position="448,208" size="380,42" font="Regular;24" text='scale="scale"' foregroundColor="#00FFFFFF" transparent="1" />
  <eRectangle position="448,272" size="380,260" backgroundColor="#003D526D" zPosition="0" />
  <ePixmap position="448,272" size="380,260" pixmap="~/assets/pattern.png" scale="scale" alphaTest="blend" zPosition="1" />
  <eLabel position="848,208" size="380,42" font="Regular;24" text='scale="centerScaled"' foregroundColor="#00FFFFFF" transparent="1" />
  <eRectangle position="848,272" size="380,260" backgroundColor="#003D526D" zPosition="0" />
  <ePixmap position="848,272" size="380,260" pixmap="~/assets/pattern.png" scale="centerScaled" alphaTest="blend" zPosition="1" />

Download complete pixmaps.xml · Download all examples and the test plugin

Common scaling values

scale value	Behaviour
none	Keep original pixel size
scale	Stretch to the widget rectangle, potentially changing aspect ratio
keepAspect	Scale while preserving aspect ratio
centerScaled	Fit with aspect ratio preserved and centre horizontally/vertically
leftTop, rightBottom, etc.	Fit with preserved aspect ratio and the stated alignment

The engine accepts more flags and legacy spellings. Use parseScale to inspect the exact mapping. scale here does not select HD/FHD/WQHD.

Alpha handling

alphaTest="off" disables the pixmap alpha mode. on uses alpha testing; blend uses smooth alpha blending and is the usual choice for antialiased PNG edges and partial transparency. The lowercase alphatest spelling is a compatibility alias.

A PNG’s alpha channel follows the image format’s convention. Do not invert PNG alpha because Enigma2’s XML colour strings use 00 for opaque; the image loader handles the conversion.

Paths and file failures

The sample plugin supplies self.skin_path and uses ~/assets/pattern.png. If an image is missing, check the resolved path, filename case and file readability. Linux filenames are case-sensitive.

The original test artwork is also supplied as SVG source, with a PNG used in the example. That makes the demonstration reproducible without a dependency on a particular skin’s artwork. Larger source images use more receiver memory; choose an appropriate size and preserve crisp edges at the intended display resolution.
